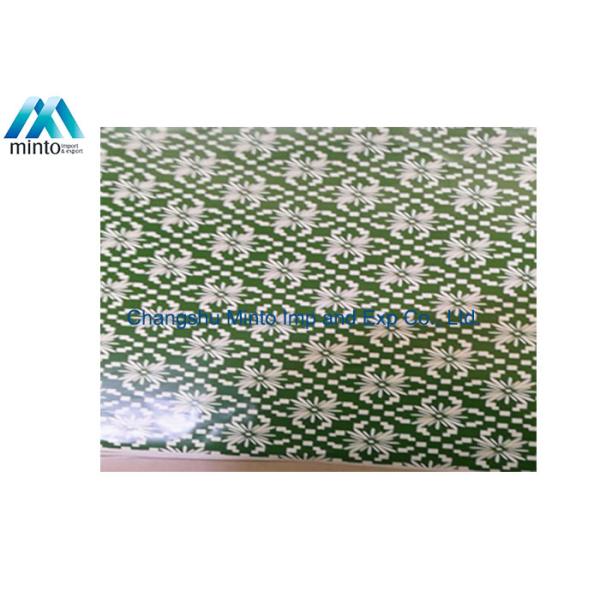

JIS G3302 JIS G3313 ASTM PPGI Steel Coil Wooden Pattern Flower Printed
Product Description
1. Factory of Prepainted Steel Coils
2. Thickness:0.135-0.8mm
3. Width:600-1250mm
4. AZ/Zn:40-275gsm
5. Paint: 10-25μm/5-12μm
S350GD+AZ PPGL Color Coated Galvalume Steel Coil Specifications:
| Name | Prepainted Galvanized Steel Coil |
| Type of Substrate | Hot Dip Galvanized, Galvalume, Zinc Alloy, Cold Rolled Steel
Aluminium |
| Thickness | 0.13mm-1.2mm |
| Width | 600~1250mm |
| Coating Types | Top Paint: PVDF, HDP, SMP, PE, PU |
| Primer Paint: Polyerethane, Epoxy, PE |
| Back Paint: Epoxy, Modified Polyester |
| Type of coating process | Front: Double Coated & Double Drying |
| Back: Double Coated & Double Drying, Single Coated &
Double Drying |
| Coating | Top Paint: 10~25 micron( normal 10~12micron) |
| Back Paint: 5~12micron(normal 5~7micron) |
| Tolerance | thickness+/-0.01mm |
| Coil ID | 508/610mm |
| Coil Weight | 3~5Tons |
| Packing | Standard export package .Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet |
| Application | Building industry ,structural use, roofing, commercial use ,household appliance, industry facilities, office buildings |
Attentions in Transportation and Storage:
-
Color Coated Steel Coils should be stored in neat and tidy environment to avoid possible corrosion caused by all kinds of corrasive medium.
-
The ground for storage should be flat, without hard object, and with sufficient loading-bearing capacity.
-
Storage environment should be dry and ventilated. Avoiding storing outdoors or with dew or with wide temp difference.
-
Coil could not be dragged lest the burr caused by slicing will scratch the coil surface underneath. Coil should be handled with care, without hitting any hard object
Factory&Production Line:
Wan Steel respectively have built a 2.5 million tons of annual production capacity of hot rolled steel production line in 950mm broadband,one million tons of cold rolled sheet production lines and annual production capacity of 5.3 million tons of plate,pattern plate, pressure vessel plates production lines, annual production capacity of 2 million tons Angle Steel,H section steel, Channel Steel,I-beam production lines. One million tons annual output of seamless steel pipes production lines and annual production capacity of 300 thousands tons of Stainless Steel Seamless Steel Pipes, Stainless Steel Welded Steel Pipe production lines and other projects.
Advantages:
Our products get the ISO9002 quality certificate; Ship-building plates pass the test of Germany GL, French BV, Norway DNV, Britain LR and China CCS. Petroleum Pipe gets the approval of API; Building material achieves Britain CE certificate. Steel gets the approval of ISO14000 environmental management system and OSHMS occupational health and safety management system. Wan Steel was awarded many reputations such as ‘The top enterprises of China’s large and medium-size industrial enterprises’, ‘Excellent enterprise of the national famous quality products after-sales service’, ‘The contract and trustworthy enterprise’, ‘National quality magement advanced enterprise’, ‘National reemployment of advanced enterprise’, ‘Shandong AAA grade credit enterprise’, and some other reputation titles.
Wan Steel Serve the World! Our customers spread all over the world in South and North Americas, Europe, Africa and Asia such as USA, Canada, Brazil, Argentina, Germany, Britain, Italy, Ukraine, Russia, and ASEAN countries, etc. The future of wan steel will have a more expansive developing space and bright prospects. We warmly welcome international friends to china for sightseeing and tour. Welcome to wan steel group for business negotiation! Let’s hand in hand, create brilliant!
Prime color coated galvanized steel coil is used for making galvanized corrugated steel sheet,it's base material. it is a popular building material for both industrial and civil constructions. prime color coated galvanized steel coil with a light, beautiful and good corrosion resistance, can be directly processed, mainly used in construction, household appliances, electrical industry, the furniture industry and transport.
We also have some other steel coil for you to choose, such as:PPGI,PPGL and HDGI.All of them have different technical treatment.
